LED BA15D T17-15SMD
BA15D T17-15SMD
Indicators LED Lamp
Product: T17-15SMD
Base: BA15D(1142)
LED type: 3528SMD PLCCx17
Electrical and Optical Characteristics
| Type | Red | Yellow | Green | Blue | White | warm White |
|---|---|---|---|---|---|---|
| LED Quanlity | 15 | 15 | 15 | 15 | 15 | 15 |
| Single LED itensity(mcd) | 493 | 515 | 1134 | 417 | 1543 | 1541 |
| Color Temperature(K) | 1001 | 1621 | 7598 | >=100000 | 6800 | 3500 |
| View Angle(degree) | 180 | 180 | 180 | 180 | 180 | 180 |
| Wave Length(nm) | 630 | 595 | 530 | 470 | x:0.315, y:0.342 | x:0.421, y:0.388 |
| Luminance(Flux) | 8.721 | 8.976 | 18.984 | 6.7075 | 24.125 | 23.125 |
| Voltage(V) | 230V AC | 230V AC | 230V AC | 230V AC | 230V AC | 230V AC |
| Current(mA) | 11 | 11 | 11 | 11 | 11 | 11 |
| Power consumption(W) | 2.53 | 2.53 | 2.53 | 2.53 | 2.53 | 2.53 |
| Operating Temperature(C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Dimension DxH(mm) | 17x46.5 | 17x46.5 | 17x46.5 | 17x46.5 | 17x46.5 | 17x46.5 |

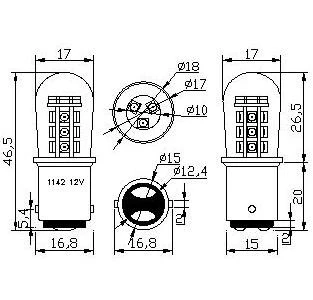

Drawing
