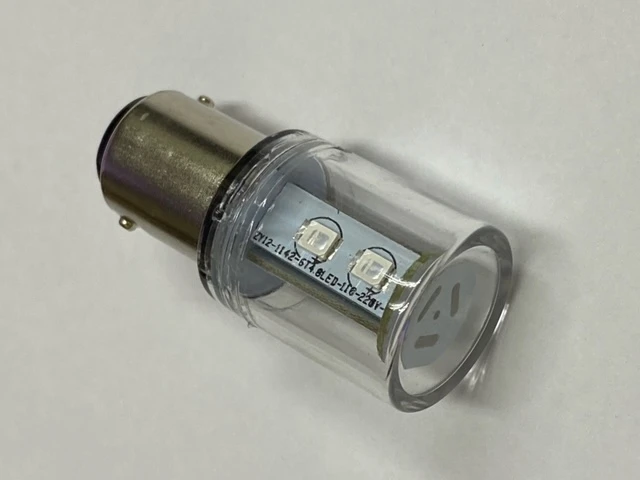

LED BA15D T20-6SMD
Bayonet 15D T20-6SMD
Indecators LED Lamp
Product: T20-6LED
Base: BA15D Iron
LED type: 3528SMD PLCCx6
Electrical and Optical Characteristics
| Discreptions | Red | Yellow | Green | Blue | White | Warm White |
|---|---|---|---|---|---|---|
| LED Quanlity | 6 | 6 | 6 | 6 | 6 | 6 |
| Color Temperature(K) | 1001 | 1541 | 7540 | <=10000 | 6200 | 3000 |
| Wave Length(nm) | 630 | 595 | 515 | 470 | x:0.315, y:0.317 | x:0.44, y:0.40 |
| Luminance(Flux) | 16 | 17 | 45 | 9 | 45 | 40 |
| Voltage(V) | 30V DC | 30V DC | 30V DC | 30V DC | 30V DC | 30V DC |
| Current(mA) | 14 | 14 | 12 | 12 | 12 | 12 |
| Power consumption(W) | 0.42 | 0.42 | 0.36 | 0.36 | 0.36 | 0.36 |
| Operating Temperature(C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Dimension DxH(mm) | 20x45 | 20x45 | 20x45 | 20x45 | 20x45 | 20x45 |

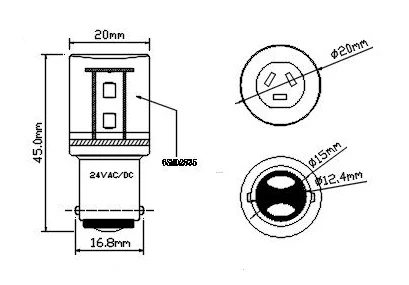

Drawing
