LED E14 T20-8SMD
E14 T20-8SMD
Indicators LED Lamp
Product: T20-8SMD
Base: Screwed E14
LED type: 3014SMD PLCCx8
Electrical and Optical Characteristics
| Descriptions | White | warm White |
|---|---|---|
| LED Quanlity | 8 | 8 |
| Color Temperature(K) | 7500 | 2950 |
| View Angle(degree) | 120 | 120 |
| Luminance(Flux) | 50 | 48 |
| CRI | >=70% | >=70% |
| Lighting Dcay Rate | <=20%(10000 ) | <=20%(10000 ) |
| Voltage(V) | 28V AC/DC | 28V AC/DC |
| Current(mA) | 30 | 30 |
| Power consumption(W) | 0.84 | 0.84 | Average Life span(hours) | 10000 | 10000 |
| Operating Temperature(C) | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+100 | -40~+100 | Lamp base | E14 Iron | E14 Iron | Housing/Color | PC Clear | PC Clear | Cover/Color | PC Clear | PC Clear |
| Dimension DxH(mm) | 20x42 | 20x42 | Weight | 10 g | 10 g | Packing inner//carton | 10//500 | 10//500 |

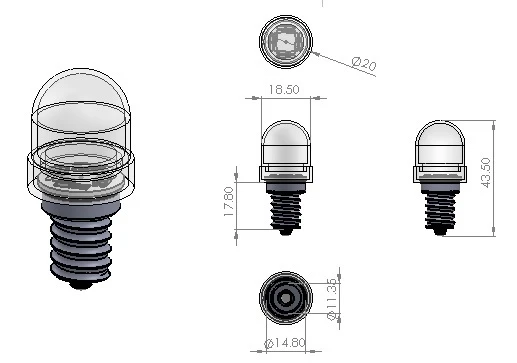

Drawing
