LED E14 T20-6LED
E14 T20-6LED
Indicators LED Lamp
Product: T20-6LED
Base: E14 Iron
LED type: 5mm DIPx6
Electrical and Optical Characteristics
| Discreptions | Red | Yellow | Green | Blue | White |
|---|---|---|---|---|---|
| LED Quanlity | 6 | 6 | 6 | 6 | 6 |
| Single LED itensity(mcd) | 211 | 198 | 471 | 133 | 411 |
| Color Temperature(K) | 1001 | 1739 | 9142 | <=10000 | 6432 |
| View Angle(degree) | 180 | 180 | 30.4 | 180 | 180 |
| Wave Length(nm) | 630 | 595 | 515 | 470 | x:0.315, y:0.317 |
| Luminance(Flux) | 3.625 | 4.017 | 3.437 | 1.667 | 158.001 |
| Voltage(V) | 220V AC | 220V AC | 220V AC | 220V AC | 220V AC |
| Current(mA) | 16 | 16 | 16 | 16 | 16 |
| Power consumption(W) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Operating Temperature(C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Dimension DxH(mm) | 20x45 | 20x45 | 20x45 | 20x45 | 20x45 |

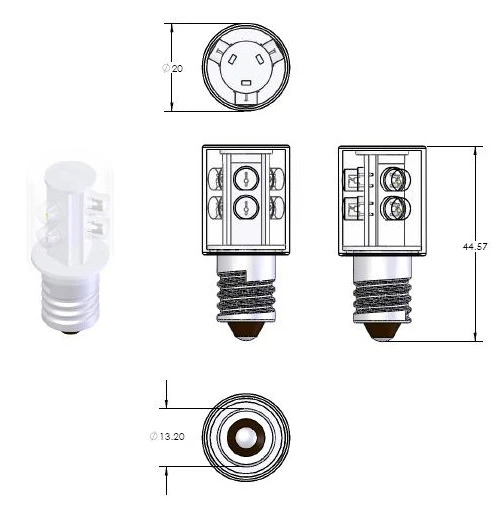

Drawing
