LED Wedge T10-5HP3
T10-5HP3
Automobile LED Lamp
Product: T10-5HP3
Base: Wedge T10
LED type: 5050SMD PLCCx5
Electrical and Optical Characteristics
| Type | Red | Yellow | Green | Blue | White |
|---|---|---|---|---|---|
| LED Quanlity | 5 | 5 | 5 | 5 | 5 |
| Single LED itensity(mcd) | 1662 | 1747 | 3262 | 1524 | 3464 |
| Color Temperature(K) | 1001 | 1357 | 7425 | >=10000 | 8800 |
| View Angle(degree) | 159 | 160 | 155 | 162 | 160 |
| Wave Length(nm) | 630 | 595 | 524 | 470 | x:0.284, y:0.299 |
| Luminance(Flux) | 14.29 | 15.65 | 17.93 | 8.11/td> | 26 |
| Test Voltage(V) | 36 DC | 36 DC/td> | 36 DC | 36 DC | 36 DC |
| Current(mA) | 40 | 40 | 40 | 40 | 40 |
| Power consumption(W) | 1.44 | 1.44 | 1.44 | 1.44 | 1.44 |
| Operating Temperature(C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Dimension DxH(mm) | 11.83x27.5 | 11.83x27.5 | 11.83x27.5 | 11.83x27.5 | 11.83x27.5 |

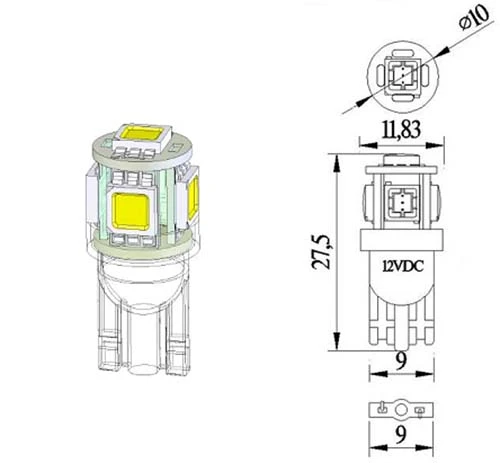

Drawing
