LED Wedge T5-1HP3
T5-1HP3
Automobile LED Lamp
Product: T5-1HP3
Base: Wedge T5
LED type: 3030SMD PLCCx1
Electrical and Optical Characteristics
| Type | Red | Yellow | Green | Blue | White |
|---|---|---|---|---|---|
| LED Quanlity | 1 | 1 | 1 | 1 | 1 |
| Single LED itensity(mcd) | 1054 | 1442 | 2257 | 725 | 2116 |
| Color Temperature(K) | <=1500 | 1000~1250 | 7400 | >=30000 | 8800 |
| View Angle(degree) | 148.8 | 167 | 153.5 | 144.5 | 151.4 |
| Wave Length(nm) | 630 | 595 | 524 | 470 | x:0.301, y:0.304 |
| Luminance(Flux) | 3.891 | 2.595 | 4.52 | 2.164 | 4.795 |
| Test Voltage(V) | 14.2 DC | 14.2 DC/td> | 14.2 DC | 14.2 DC | 14.2 DC |
| Current(mA) | 20 | 20 | 20 | 20 | 20 |
| Power consumption(W) | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 |
| Operating Temperature(C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Dimension DxH(mm) | 6x16 | 6x16 | 6x16 | 6x16 | 6x16 |

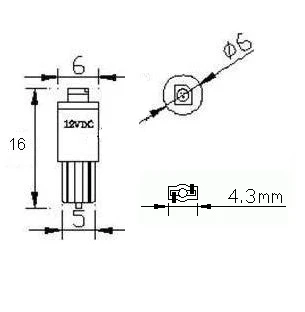

Drawing
