LED Midge Flange UHP
T10-UHP
Industrial dashboard LED Lamp
Product: Flange 3030SMD
Base: Midge Flange
LED type: 3030SMD PLCCx1
Electrical and Optical Characteristics
| Type | Red | Yellow | Green | Blue | White |
|---|---|---|---|---|---|
| LED Quanlity | 1 | 1 | 1 | 1 | 1 |
| Color Temperature(K) | 1100 | 1800 | 6120 | <=10000 | 6330 |
| View Angle(degree) | 120 | 120 | 120 | 120 | 120 |
| Wave Length(nm) | 630 | 590 | 525 | 470 | x:0.283, y:0.287 |
| Luminance(Flux/LM) | 6 | 6 | 12 | 3 | 16 |
| Voltage(V) | 28 DC | 28 DC/td> | 28 DC | 28 DC | 28 DC |
| Current(mA) | 12 | 12 | 12 | 12 | 12 |
| Power consumption(W) | 0.336 | 0.336 | 0.336 | 0.336 | 0.336 |
| Operating Temperature(C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Storage Temperature(C) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Dimension DxH(mm) | 7.2x11.5 | 7.2x11.5 | 7.2x11.5 | 7.2x11.5 | 7.2x11.5 |

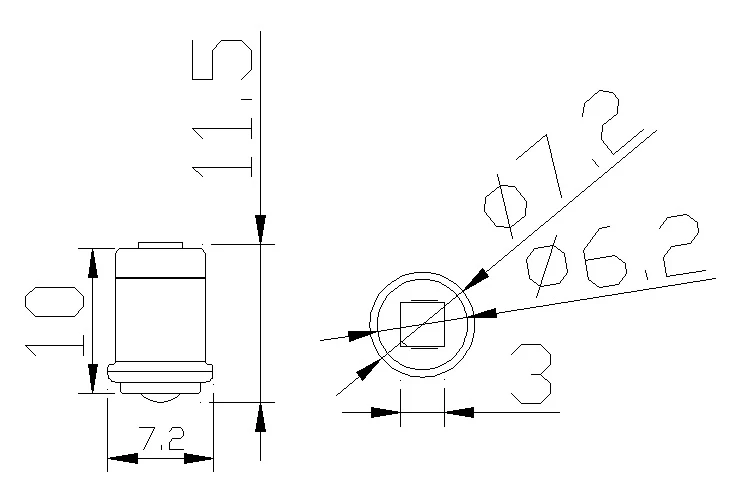

Drawing
