Neon NE-616
Neon 6x16mm
Industrial Indicators Lamp
Product: NE616
Lead Length: 30mm
Electrical and Optical Characteristics
| Descriptions | NE 2 | NE 2H | NE 2C | NE 2G | NE 2B | NE 2W |
|---|---|---|---|---|---|---|
| Dimension (mm) | 6x16 | 6x16 | 6x16 | 6x16 | 6x16 | 6x16 |
| Lens | water clear | water clear | water clear | water clear | water clear | water clear |
| Voltage (AC) | 110 | 100 | 220 | 100 | 220 | 100 |
| Threshold Voltage(BDV) | 65V | 95V | 65V | 85V | 85V | 85V |
| Current(mA) | 1.1 | 1.5 | 1.5 | 0.85 | 0.85 | 0.85 |
| Power(W) | 0.121 | 0.15 | 0.33 | 0.85 | 0.187 | 0.85 |
| Life(hours) | 25000 | 25000 | 25000 | 20000 | 10000 | 10000 |

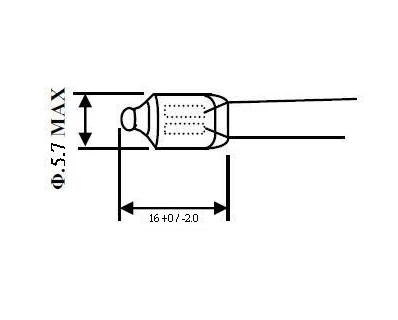

Drawing
