Neon NE-410
Neon 4x10mm
Industrial Indicators Lamp
Product: NE410
Lead length: 30mm
Electrical and Optical Characteristics
| Descriptions | NE 2 | NE 2H | NE 2C | NE 2G | NE 2B | NE 2W |
|---|---|---|---|---|---|---|
| Dimension (mm) | 4x10 | 4x10 | 4x10 | 4x10 | 4x10 | 4x10 |
| Lens | water clear | water clear | water clear | White | water clear | water clear |
| Voltage V(AC) | 220 | 110 | 220 | 110 | 220 | 110 |
| Threshold Voltage(BDV) | 65V | 95V | 65V | 85V | 85V | 85V |
| Current(mA) | 0.8 | 1.5 | 1.5 | 0.85 | 0.85 | 0.85 |
| Power(W) | 0.176 | 0.165 | 0.242 | 0.935 | 1.885 | 0.905 |
| Life(hours) | 25000 | 25000 | 25000 | 20000 | 10000 | 10000 |

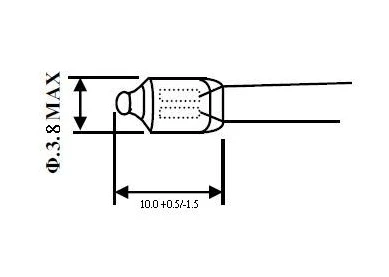

Drawing
